Sine Waveform Source
The Sine Waveform Source subcircuit models a time-varying source with a sinusoidal voltage. At time=0, the source starts at ???MATH???\frac{1}{2}\left(\text{START_VOLTAGE}+\text{FINAL_VOLTAGE}\right)???MATH???, and has a sine-wave function. In DVM, the sine source is not used in any test objectives. You can change any source to a Sine Waveform Source with a Sin() call in a Source column.
Other similar sources include:
- Cosine Source - Same as a Sine Waveform Source but with a Cosine function.
In this topic:
| DVM Information | Power Supply (Non-DVM) Information | |
| Model Name | Sine Waveform Source | |
| Simulator |
 This device is compatible with both the SIMetrix and SIMPLIS
simulators. |
|
| Parts
Selector Menu Location |
||
| Symbol Library | SIMPLIS_DVM_ADVANCED.sxslb | power_supply_source_and_loads.sxslb |
| Model File | SIMPLIS_DVM_ADVANCED.lb | power_supply_source_and_loads.lb |
| Subcircuit Name | SIMPLIS_DVM_ADVANCED_SOURCE_SIN | POWER_SUPPLY_SOURCE_SIN |
| Symbols |
|
 |

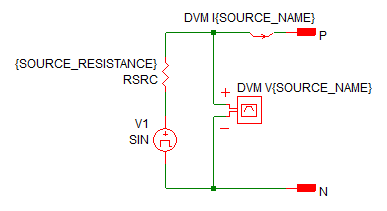

| Schematic |
Note: Power Supply probes will not have the "DVM" prefix.
|
|
Parameters
The following table explains the relevant parameters.
| Parameter Name | Default | Data Type | Range | Units | Parameter Description |
| COEFFICIENT | 0 | Real | The damping coefficient for the sinusoidal source voltage. If non-zero, the sinusoidal source voltage amplitude will decay with a time constant equal to$\frac{1}{\text{COEFFICIENT}}. | ||
| FINAL_VOLTAGE | 750m | Real | V | The peak or maximum voltage for the sine wave source. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage. | |
| FREQUENCY | 10k | Real | min: > 0 | Hz | The frequency of the source pulse |
| IDLE_IN_POP | 0 | Real | 0 or 1 | If set to 0, the source voltage during the POP analysis is set to the START_VOLTAGE; otherwise the source will be active during the POP analysis. | |
| SOURCE_NAME | SRC | String | n/a | n/a | Name of the DVM source. This name cannot contain spaces. |
| SOURCE_RESISTANCE | 0.4 | Real | min:0 | Ω | Sets the source resistance of the source |
| OFF_UNTIL_DELAY | 0 | Real | 0 or 1 | If set to 1, the source voltage will be ???MATH???\frac{1}{2}\left(\text{START_VOLTAGE}+\text{FINAL_VOLTAGE}\right)???MATH??? until the time specified by TIME_DELAY. If set to 0, the value of TIME_DELAY is interpreted as a phase delay. | |
| PHASE_ANGLE | 90 | Real | ° | The phase angle of the sinusoidal waveform, used only if the USE_PHASE parameter is 1. | |
| START_VOLTAGE | 0 | Real | V | The minimum or starting voltage for the sine waveform source. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage. | |
| TIME_DELAY | 10u | Real | min: 0 | s | The delay before the sinusoid starts. The source behavior before the TIME_DELAY is determined by the OFF_UNTIL_DELAY parameter. |
| USE_PHASE | 0 | Real | 0 or 1 | If set to 1, the source is configured to use the phase angle supplied by the PHASE_ANGLE parameter. |
DVM Testplan Entry
To set any managed DVM source to a Sine Waveform Source subcircuit, place a Sin() testplan entry in the Source column.
The Sine Waveform Source testplan entry has the following syntax with the arguments taken from the list of Parameters above.
Sin(REF, START_VOLTAGE, FINAL_VOLTAGE, FREQUENCY) Sin(REF, START_VOLTAGE, FINAL_VOLTAGE, FREQUENCY, OPTIONAL_PARAMETER_STRING)
| Argument | Range | Description |
| REF | n/a | The actual reference designator of the DVM source or the more generic syntax of INPUT:n where n is an integer indicating a position in the list of DVM sources. |
| START_VOLTAGE | n/a | The minimum or starting voltage for the sine waveform source. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage. |
| FINAL_VOLTAGE | n/a | The peak or maximum voltage for the sine wave source. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage. |
| FREQUENCY | min: > 0 | The frequency of the sine wave source. |
| OPTIONAL_PARAMETER_STRING | n/a | Parameter string with any of the other parameters from the parameter table above* |
* If multiple parameters are specified, join the parameter key-value pairs with a space, as shown in the examples below. The order of the parameter names does not matter.
DVM Examples
The following examples set the first DVM managed source to a Sine Waveform Source with a starting voltage of 2V and a peak-to-peak voltage of 4V. The timing parameters and the optional parameter strings are different for each example.
Zero Time Delay Example
Since the TIME_DELAY parameter is set to zero, the waveform begins with the START_VOLTAGE value of 2 at t=0.
| *?@ Source |
|---|
| Sin(INPUT:1 , 2 , 4 , 10k , TIME_DELAY=0u) |

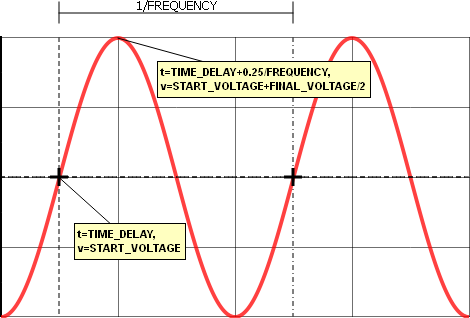

The results of this testplan entry are shown below:
Time Delay Example
In this example, the TIME_DELAY parameter is set to 25μs. Since the OFF_UNTIL_DELAY parameter is not specified, the TIME_DELAY is interpreted as a phase delay, meaning that the waveform is active from time=0.
| *?@ Source |
|---|
| Sin(INPUT:1 , 2 , 4 , 10k , TIME_DELAY=25u) |

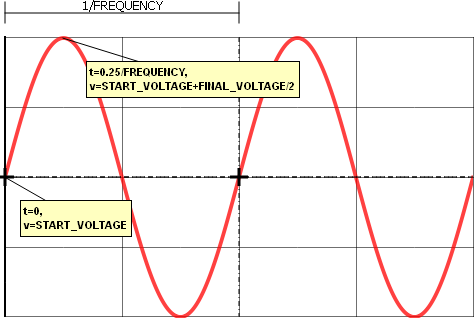

The results of this testplan entry are shown below:
Time Delay Example With OFF_UNTIL_DELAY=1
In this example the TIME_DELAY parameter is set to 25us, and the OFF_UNTIL_DELAY is set to 1; therefore, for simulation times less than the TIME_DELAY parameter, the source voltage is 2V, which is the value of the START_VOLTAGE argument.
| *?@ Source |
|---|
| Sin(INPUT:1 , 2 , 4 , 10k , OFF_UNTIL_DELAY=1 TIME_DELAY=25u) |

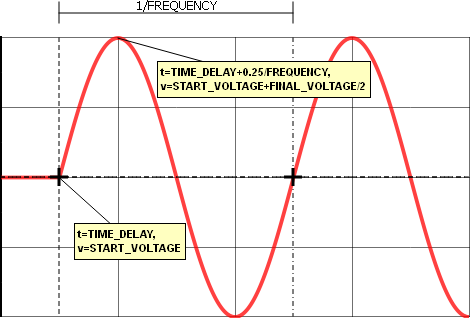

The results of this testplan entry are shown below:
Phase Delay Example
In this example, the USE_PHASE parameter is set to 1, and the PHASE_ANGLE parameter is set to 60. Setting USE_PHASE to 1 configures the source to use the PHASE_ANGLE parameter to determine the effective time delay. The time delay is calculated by:
\[ \text{TIME_DELAY} = \frac{\text{PHASE_ANGLE}}{\text{360*FREQUENCY}} \]
| *?@ Source |
|---|
| Sin(INPUT:1 , 2 , 4 , 10k , USE_PHASE=1 PHASE_ANGLE=60) |

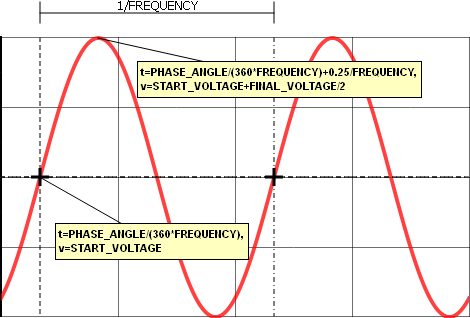

The results of this testplan entry are shown below:
Phase Delay Example With OFF_UNTIL_DELAY=1
In this example the PHASE_ANGLE parameter is set to 60, and the OFF_UNTIL_DELAY is set to 1; therefore, for simulation times less than the time delay defined by the PHASE_ANGLE parameter, the source voltage is 2V, which is the value of the START_VOLTAGE argument.
| *?@ Source |
|---|
| Sin(INPUT:1 , 2 , 4 , 10k , OFF_UNTIL_DELAY=1 USE_PHASE=1 PHASE_ANGLE=60) |

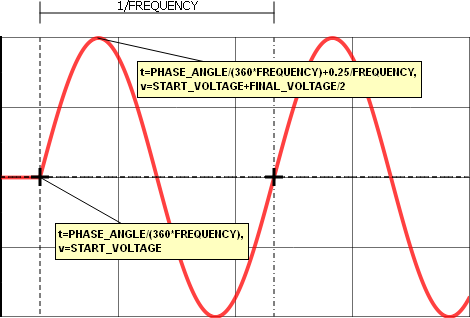

The results of this testplan entry are shown below:
