UpDownDialog Function

Opens the following dialog box to allow the user to rearrange the order of a list of strings. The box displays the strings given in argument 1 in the order supplied. The user can rearrange these using the up and down arrow buttons. When the user presses OK the function return the strings in the new order. If the user cancels the box the function returns an empty vector.

Arguments

Number Type Compulsory Default Description
1 string array Yes Strings to sort
2 string No 'Select Item Order' Box caption

Returns

Return type: string array

The strings in the new order, or an empty string if cancel is pressed.

Example

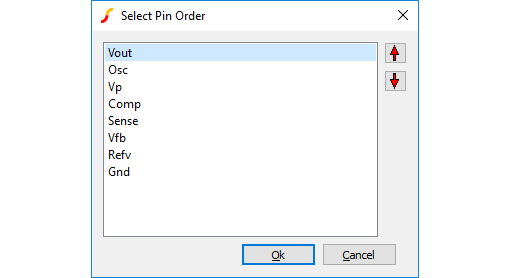

The following statement will open the box as shown in the above picture
Show UpDownDialog(['Vout', 'Osc', 'Vp', 'Comp', 'Sense', 'Vfb', 'Refv', 'Gnd'], 'Select Pin Order')
