UserParametersDialog Function

Opens the following dialog box and enters the names and values specified in the arguments. The user may edit any of the values by double clicking an entry or pressing the space bar. The function returns a string array holding the new values for each parameter.


Number Type Compulsory Default Description
1 string array Yes Names
2 string Yes Values
3 string No 'Edit Device Parameters' Title


Return type: string array

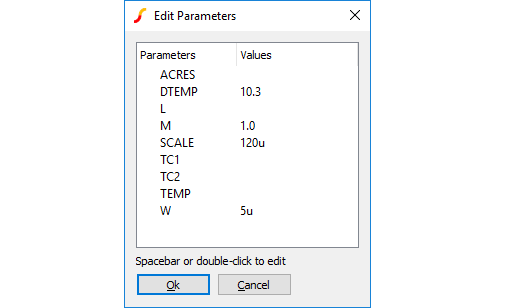

The following would open a dialog box as shown in the above picture:
Show UserParametersDialog(['ACRES', 'DTEMP', 'L', 'M', 'SCALE', 'TC1', 'TC2', 'TEMP', 'W'],
+ [", '10.3', ", '1.0', '120u', ", ", ", '5u'])
