SIMPLIS BJT Options

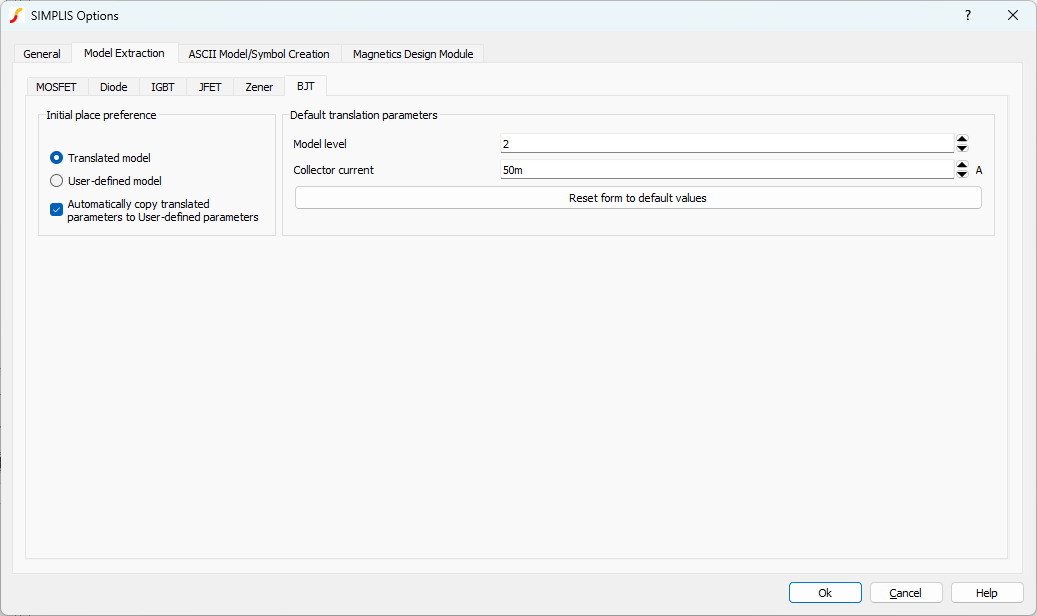

The default test conditions for the Translate BJT Parameters dialog can be set from the menu File > Options > SIMPLIS Options...

BJT Translation Parameters

Test Condition Default Value Units Description
SPICE Model 2N2222
Model level 2   Model complexity. For information on choosing the model level, see BJT Model Levels.
Peak collector current 50m A Peak collector current for this device.
Device is ON at time=0 Unchecked   Sets the initial state of this device.
